EDS files and STC files in JSON format with .SOC extensions are specific to each use case and we refer you to the requirements published by ODVA to ensure that you have the latest requirements.

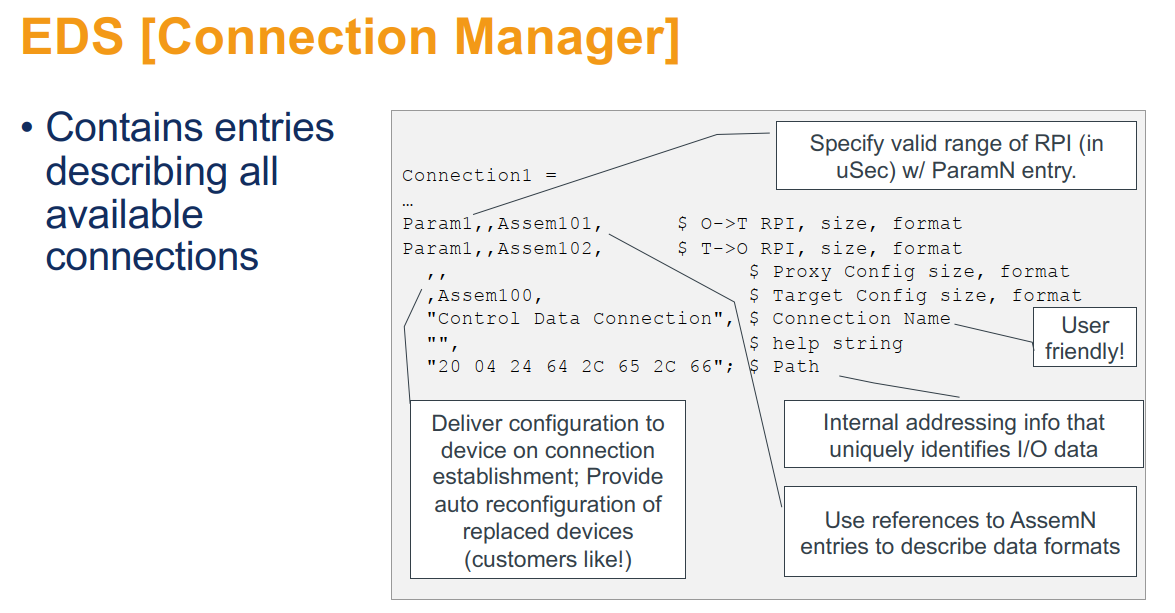

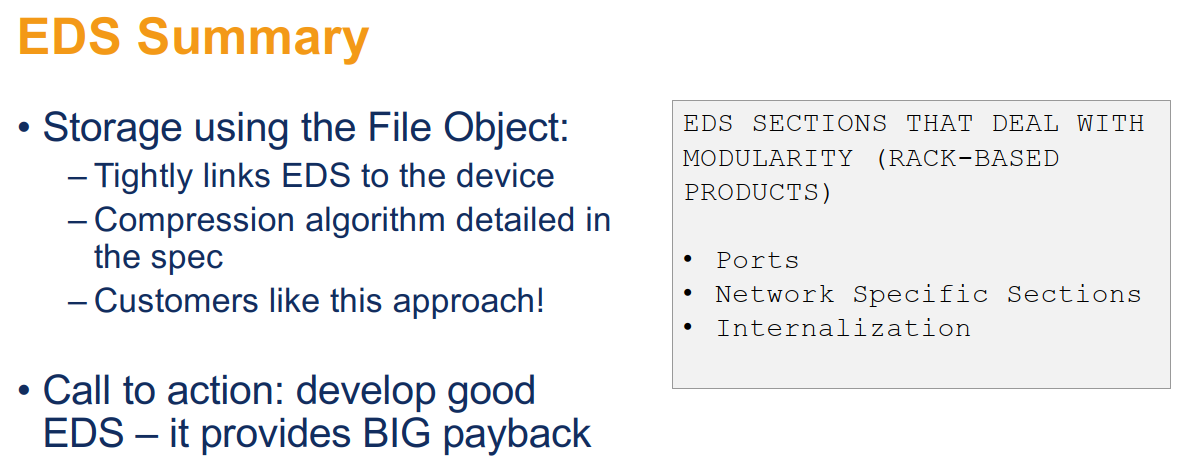

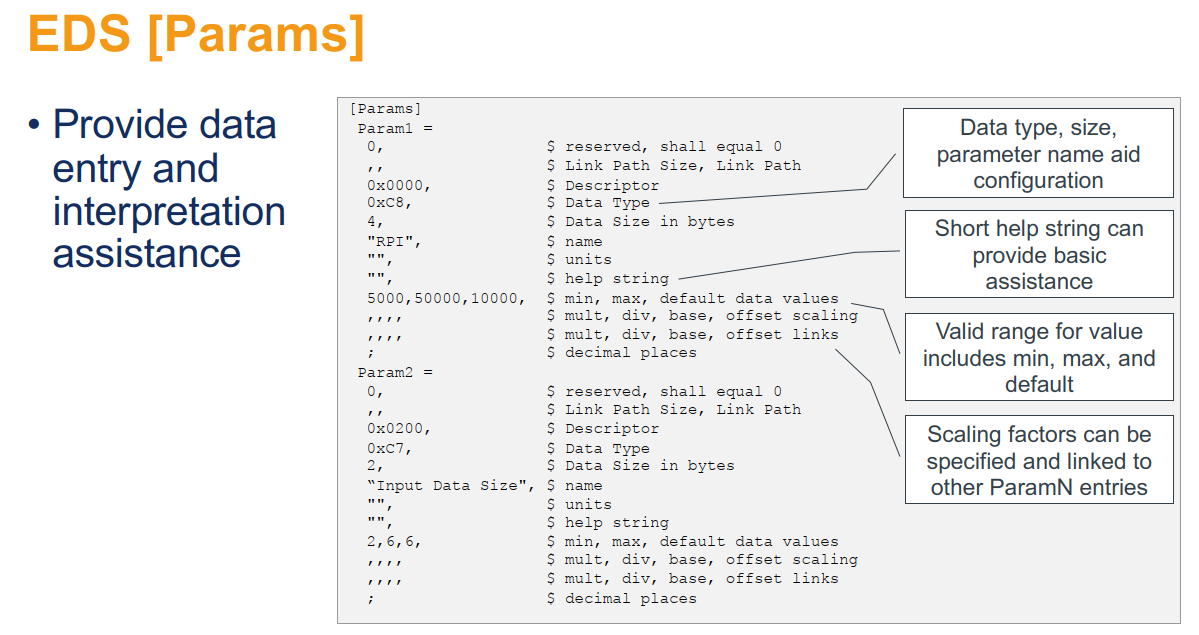

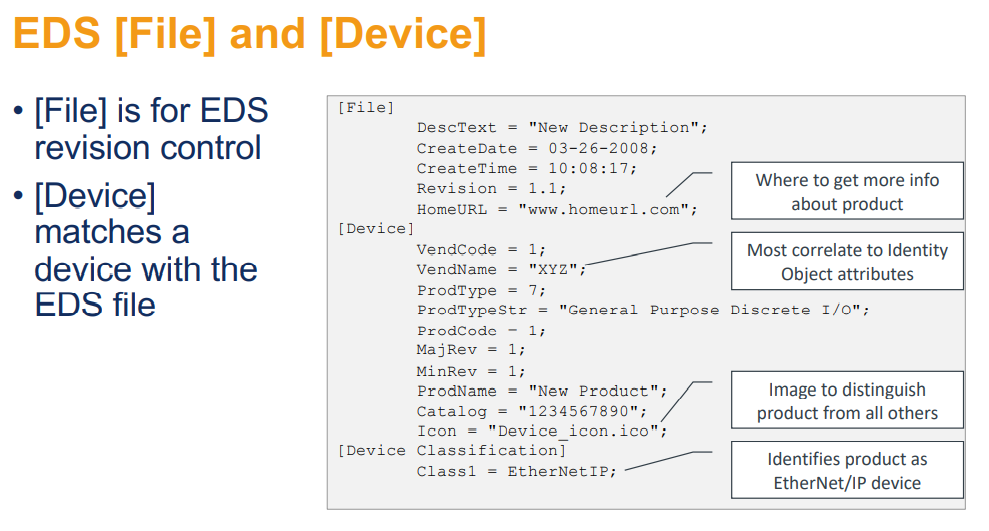

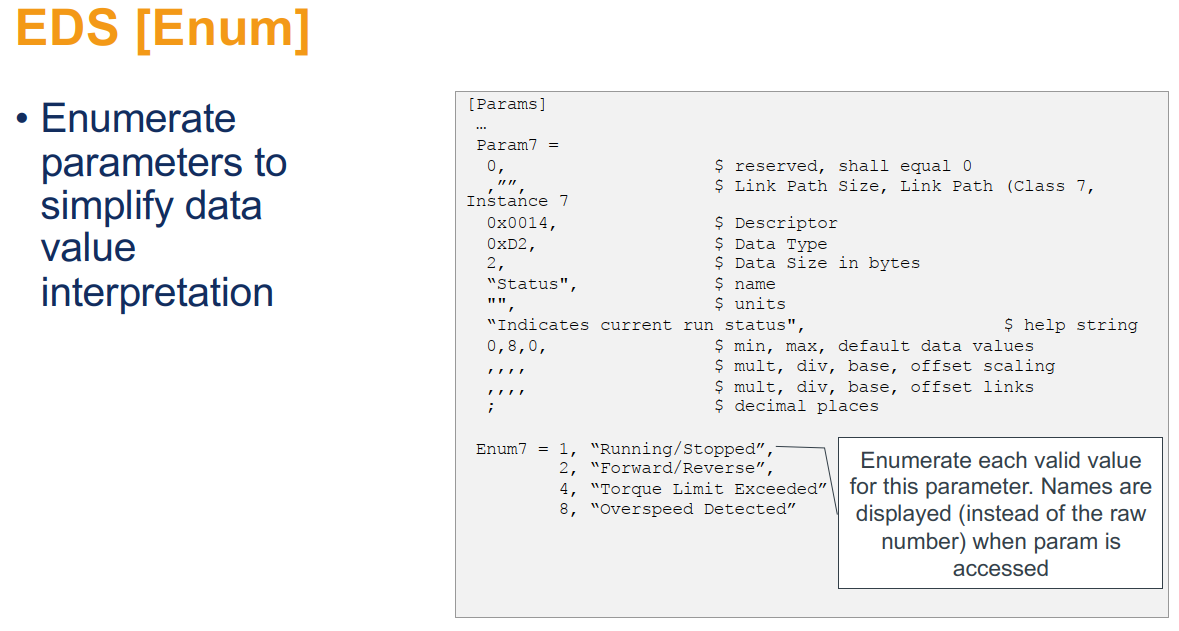

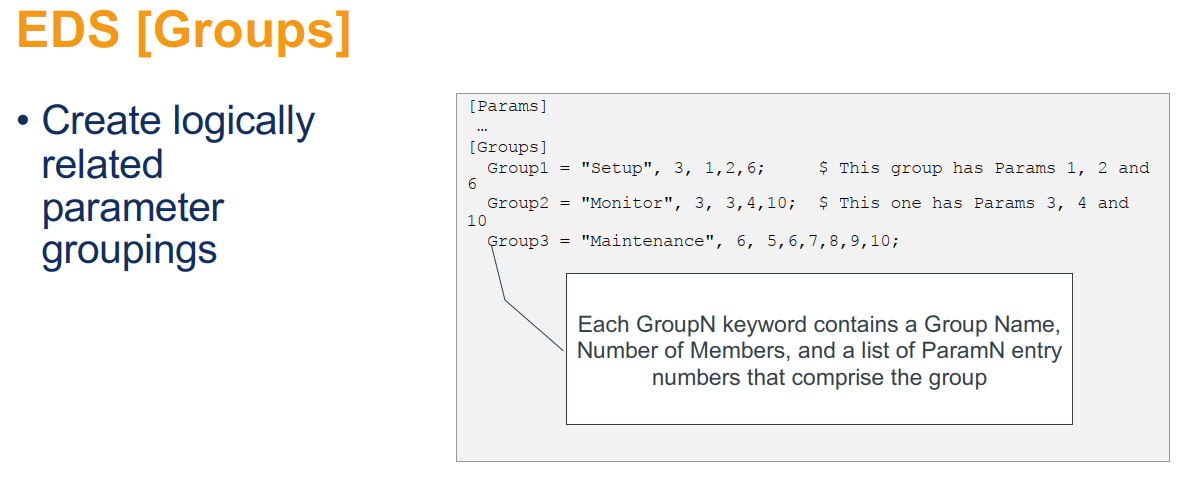

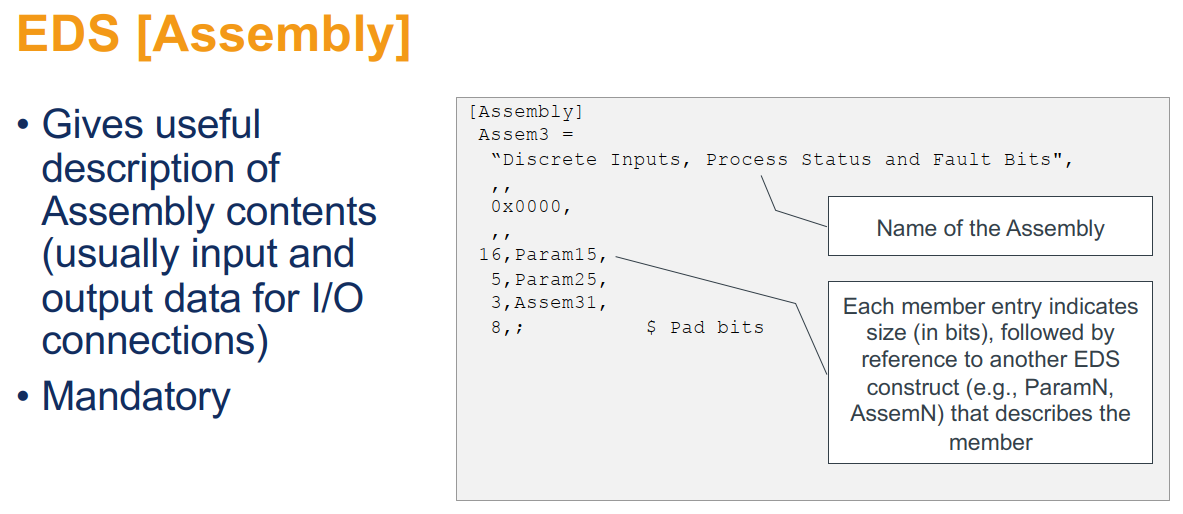

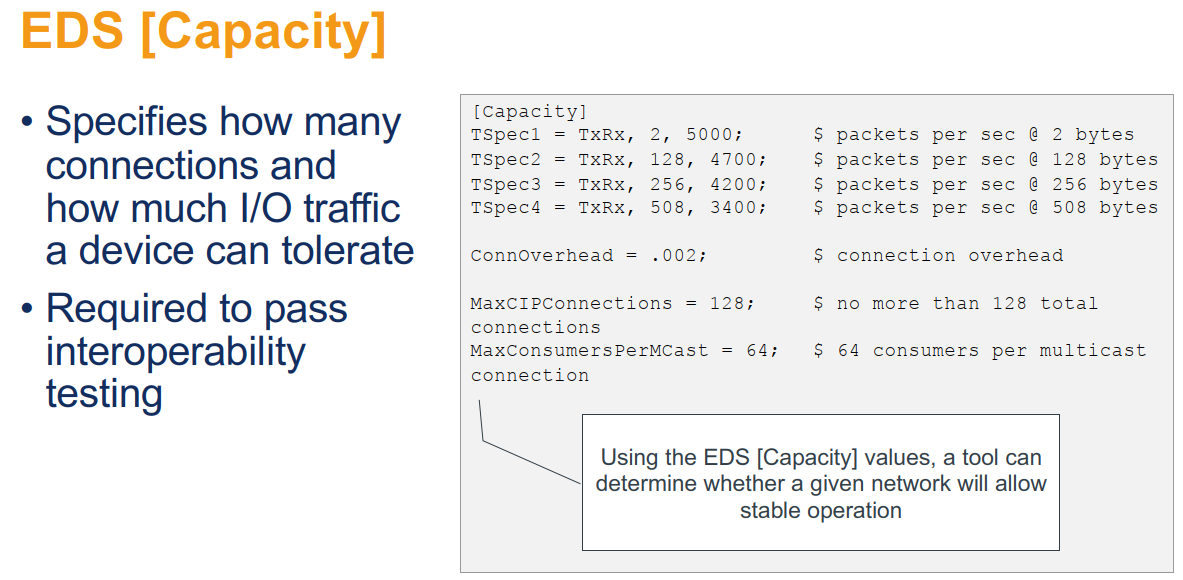

I will provide you with an overview of the variables found in the EDS Files:

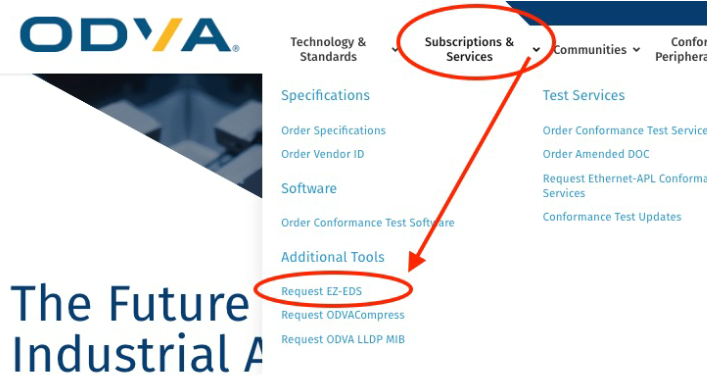

ODVA provides the EZ-EDS configuration tool for download that has added support for LLDP Data Table class and LLDP Management Class with the CT19 Release. I have attached the latest conformance test release notes for you.

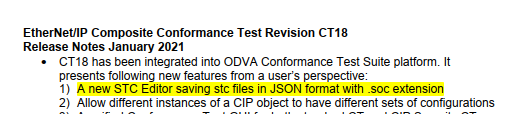

For your request regarding a .SOC file; The ODVA conformance test suite supports a new STC Editor saving STC files with a .SOC extension since CT18


I hope that you found this reference information helpful.
